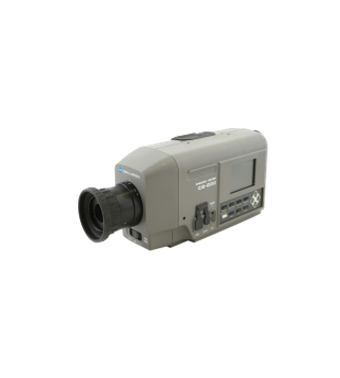

KONICA MINOLTA CHROMA METER CS-200

High Accuracy Luminance & Chromaticity Measurement. Comparable To Many Spectroradiometer

Konica Minolta CS-200 Chroma meter is designed with spectral fitting method provides tristimulus values with sighnificatntly higher accuracy than that of conventional tristinulus colorimeters. This is achieved by using the output from 40 sensors to calculate the spectral response corresponding to human eye sensitivity (CIE 1931 color-matching functions).

Chroma meter CS-200 measure both luminance and chromaticity with high accuracy. Low in price, the CS-200 Chroma meter features an updated auto mode for determining measurement speed according the luminance of the subject being measured. It can measure any light source over a wide range of luminance levels from 0.01 cd/m² to 20,000,000 cd/m².

3 selectable measurement angles (1°, 0.2° and 0.1°). The measuring angle can be adjusted according to the measurement target or application.

The CS-200 is battery powered and lightweight. It comes with Data Management Software CS-S10W Standard as a standard accessories. CS-S10W Std Edition allows user to control the CS-200 when connected to a PC to display the list of measured data or to transfer the data to spreadsheet software.



APPLICATIONS:
Optical devices such as display like LCDs | PDP | Organic LED | Organic EL | LED Billboard | Automotive (Instrument Panel & Switches) | Car Audio Panel |
Digital Broadcasting and etc.

CS-200 Chroma Meter

  • Measured both luminance and chormaticity
  • Easy to use and affordable – great for beginners
  • Portable – battery powered and lightweight
  • Luminance and chromaticity – can measure both aspects of a display
  • Auto mode – the device determines the measurement speed according to the application
  • All luminance levels – can be used for any light and display application both low and high luminances
  • Measurement angle switching – can be switched between 1, 0.2, and 0.1 degrees according to application
  • Data management software – CS-S10w is included as a standard accessory

CS-200 Chroma Meter

Model

CS-200

Measurement range

0.01 – 200,000 cd/m² (Measuring angle 1°)
0.01 – 5,000,000 cd/m² (Measuring angle 0.2°)
0.01 – 20,000,000 cd/m² (Measuring angle 0.1°)

Accuracy (Measuring angle 1°) #1
(Temperature: 23°C±2°C, Relative humidity: 65% max.)

150 cd/m² ( for Illuminant A ) : Lv ±2 % ±1digit ; xy ±0.002
0.01-0.5 cd/m² ( for Illuminant A ) : Lv ±0.02cd/m² ±1digit ;
0.5-1 cd/m² ( for Illuminant A ) : Lv ±0.02 cd/m² ±1digit ; xy ±0.007
1-10 cd/m² ( for Illuminant A ) : Lv ±2 % ±1digit ; xy ±0.004
10-200,000 cd/m² ( for Illuminant A) : Lv ±2 % ±1digit ; xy ±0.003
5000 cd/m² ( for Illuminant A ) : color filter (R, G, B) ; xy ±0.006

Repeatability (Measuring angle 1°) #2

0.01-1 cd/m² ( for Illuminant A ) : Lv ±0.01 cd/m² ±1digit ; (2σ/AUTO)
1-2 cd/m² ( for Illuminant A ) : Lv ±0.5 % ±1digit ; xy 0.002 (2σ/AUTO)
2-4 cd/m² ( for Illuminant A ) : Lv ±0.5 % ±1digit ; xy 0.001 (2σ/AUTO)
4-8 cd/m² ( for Illuminant A ) : Lv ±0.5 % ±1digit ; xy 0.0005 (2σ/AUTO)
8-200,000 cd/m² ( for Illuminant A ) : Lv ±0.1% ±1digit ; xy 0.0004 (2σ/AUTO)

Measurement time

Automatic setting between 1s and 60s (AUTO); Automatic setting to 1s or 3s (LTD. AUTO)
0.5 sec / meas. (Super-FAST) 1 sec / meas. (FAST)3 sec / meas. (SLOW) 12 sec / meas. (Super-SLOW)

Measurement method

Spectral method, Grating + linear photo diode array

Measuring angle

1°, 0.2°, 0.1°(switchable)

Minimum measuring area

0.5 mm
0.1 mm (close up lens)

Minimum measuring distance

296 mm (Distance from front edge of metal lens barrel)

Observer

2/10 degrees

Color space

Lv x y, Lv u’ v’, Lv TΔuv, XYZ, dominant wavelength

Measurement synchronization setting range

Vertical synchronization frequency: 40.00 to 200.00Hz

Interface

USB 1.1

Power source

AC adapter or 4 x AA-Size Batteries

Battery life

Approx. 3 hours (continuous measurement / Fast mode / AA-size alkaline cells)

Size

95 mm (W) × 127 mm (H) × 330 mm (L)

Weight

1.8 kg (without battery)

Operating temperature/humidity range

0°C to 40°C, relative humidity 85% or less (at 35°C) with no condensation

Storage temperature /humidity range

0°Cto 45°C,relative humidity 85% or less (at 35°C)with no condensation

#1 23°C±2C Lv = 0.01-10 cd/m2, SLOW, average of 30 measurements Lv = 10 cd/m2 and higher, SLOW, average of 10 measurements

#2 At 0.2°measuring angle, the amount of received light is approx. 1/25 of that for 1°. Therefore, the repeatability becomes the same as that for 1°with 25 times lower luminance. At 0.1° measuring angle, the amount of received light is approx. 1/100 of that for 1°. Therefore, the repeatability becomes the same as that for 1° with 100 times lower luminance.

∗ Specifications are subject to change without notice.
