RHOPOINT VISCOSITY FLOW CUPS

AFNOR VISCOSITY FLOW CUPS

AFNOR CUP 2.5MM NF T30-014

• Orifice diameter 2.5mm (0.10")
• Viscosity range 5 ~ 140cSt
• Flow times 30 ~ 100 second

AFNOR CUP 4.0MM NF T30-014

• Orifice diameter 4.0mm (0.16")
• Viscosity range 50 ~ 1100cSt
• Flow times 30 ~ 100 second

AFNOR CUP 6.0MM NF T30-014

• Orifice diameter 6.0mm (0.24")
• Viscosity range 510 ~ 5100cSt
• Flow times 30 ~ 100 second

AFNOR CUP 8.0MM

• Orifice diameter 8.0mm (0.31")
• Viscosity range 700 ~ 11500cSt
• Flow times 30 ~ 100 second

ASTM D1200 VISCOSITY FLOW CUPS

ASTM D1200 FORD NO. 1

• Orifice diameter 2.1mm (0.08")
• Viscoity range 10 ~ 35cSt
• Flow times 55 ~ 100 second

ASTM D1200 FORD NO. 2

• Orifice diameter 2.8mm (0.11")
• Viscoity range 25 ~ 120cSt
• Flow times 40 ~ 100 second

ASTM D1200 FORD NO. 3

• Orifice diameter 3.4mm (0.13")
• Viscoity range 49 ~ 220cSt
• Flow times 30 ~ 100 second

ASTM D1200 FORD NO. 4

• Orifice diameter 4.1mm (0.16")
• Viscoity range 15 ~ 30cSt
• Flow times 25 ~ 150 second

ASTM D1200 FORD NO.5

• Orifice diameter 5.8mm (0.23")
• Viscosity range 100 ~ 1200cSt
• Flow times 30 ~ 100 second

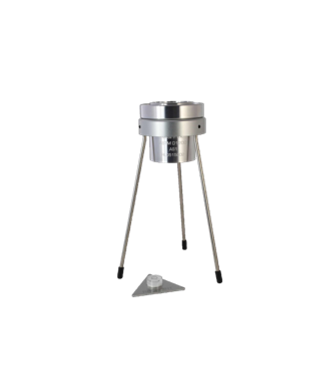

FLOW CUP STAND

• Suitable for all RHOPOINT flow cups

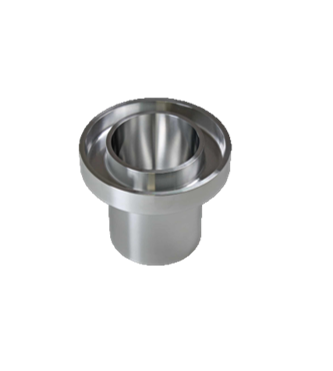

BS3900 VISCOSITY FLOW CUPS

BS3900 (1971) OLD SPECIFICATION (B2)

• )rifice diameter 2.38mm (0.09")
• Viscosity range 38 ~ 71cSt
• Flow times 30 ~ 300 second

BS3900 (1971) OLD SPECIFICATION (B3)

• Orifice diameter 3.17mm (0.12")
• Viscosity range 38 ~ 147cSt
• Flow times 30 ~ 300 second

BS3900 (1971) OLD SPECIFICATION (B4)

• Orifice diameter 3.97mm (0.16")
• Viscosity range 71 ~ 455cSt
• Flow times 30 ~ 300 second

BS3900 (1971) OLD SPECIFICATION (B5)

• Orifice diameter 4.76mm (0.19")
• Viscosity range 299 ~ 781cSt
• Flow times 30 ~ 300 second

BS3900 (1971) OLD SPECIFICATION (B6)

• Orifice diameter 7.14mm (0.28")
• Viscosity range 781 ~ 1650cSt
• Flow times 30 ~ 300 second

BS EN ISO 2431 AND ASTM D5125 VISCOSITY FLOW CUPS

BS EN ISO 2431 & ASTM D5125 NO. 3

• Orifice diameter 3.0mm (0.12")
• Viscosity range 7 ~ 42cSt
• Flow times 30 ~ 100 second

BS EN ISO 2431 & ASTM D5125 NO. 4

• Orifice diameter 4.0mm (0.16")
• Viscosity range 35 ~ 135cSt
• Flow times 30 ~ 100 second

BS EN ISO 2431 & ASTM D5125 NO. 5

• Orifice diameter 5.0mm (0.20")
• Viscosity range 91 ~ 325cSt
• Flow times 30 ~ 100 second

BS EN ISO 2431 & ASTM D5125 NO. 6

• Orifice diameter 6.0mm (0.24")
• Viscosity range 188 ~ 684cSt
• Flow times 30 ~ 100 second

BS EN ISO 2431 & ASTM D5125 NO. 8

• Orifice diameter 8.0mm (0.31")
• Viscosity range 600 ~ 2000cSt
• Flow times 30 ~ 100 second

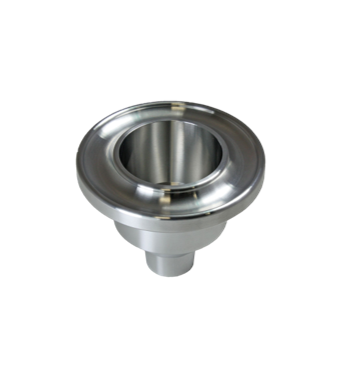

DIN 53211 VISCOSITY FLOW CUPS

DIN 53211, 2MM

• Orifice diameter 2.0mm (0.08")
• Viscosity range 15 ~ 30cSt
• Flow times 25 ~ 150 second

DIN 53211, 4MM

• Orifice diameter 4.0mm (0.16")
• Viscosity range 112 ~ 685cSt
• Flow times 25 ~ 150 second

DIN 53211, 6MM

• Orifice diameter 6.0mm (0.24")
• Viscosity range 550 ~ 1500cSt
• Flow times 25 ~ 150 second

DIN 53211, 8MM

• Orifice diameter 8.0mm (0.31")
• Viscosity range 1200 ~ 3000cSt
• Flow times 25 ~ 150 second

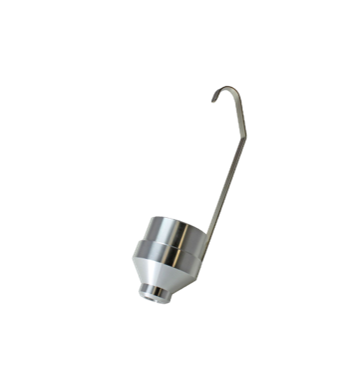

FRIKMAR VISCOSITY FLOW CUPS

FRIKMAR CUP 2MM

• Orifice diameter 2.0mm (0.08")
• Viscosity range 15 ~ 30cSt
• Flow times 25 ~ 150 second

FRIKMAR CUP 4MM

• Orifice diameter 4.0mm (0.16")
• Viscosity range 112 ~ 685cSt
• Flow times 25 ~ 150 second

FRIKMAR CUP 6MM

• Orifice diameter 6.0mm (0.24")
• Viscosity range 550 ~ 1500cSt
• Flow times 25 ~ 150 second

FRIKMAR CUP 8MM

• Orifice diameter 8.0mm (0.31")
• Viscosity range 1200 ~ 3000cSt
• Flow times 25 ~ 150 second
