MINIMUM FILM FORMING TEMPERATURE 90 INSTRUMENT

MFFT 90
RHOPOINT PAINTLAB+ MINIMUM FILM FORMING TEMPERATURE

Easy-To-Use With Touch Screen Interface Minimum Film Forming Temperature  For Water Base Coating Measurement Applications

Rhopoint Minimum Film Forming Temperature 90 instrument is the industry leading instrument for measuring the MFFT of water based material. MFFT definition “The Lowest Temperature at which a latex, emulsion or adhesive will uniformly coalesce when laid on a substrate as a thin film”.  Rhopoint MFFT work by holding a very accurate temperature gradient across the nickel plated copper platen.

The  MFFT 90 instrument is designed and built with easy to use touch screen interface, digital MFFT temperature calculation and output to handy results labels. These additions to the trusted Rhopoint MFFT make the instrument easier to operate with improved certainty of results.

The temperature bar consists of a copper platen with an electronically imposed temperature gradient. Built in temperature sensors monitor the temperature across the platen, a graph of the gradient is displayed on the touch screen.

Purge gas is integrally dried, and flows over the platen via a sintered distribution block. The hinged perspex cover provides thermal and atmospheric insulation whilst allowing constant visual inspection of a test. A cursor is moved to indicate the identified MFFT point; the instrument calculates and displays the temperature in the required units.

Standards

  • ASTM 2354 Standard Test Method for Minimum Film Formation Temperature (MFFT) of Emulsion Vehicles
  • ISO 2115 Plastics — Polymer dispersions — Determination of white point temperature and minimum film-forming temperature

APPLICATIONS:
Paint | Resins | Adhesive

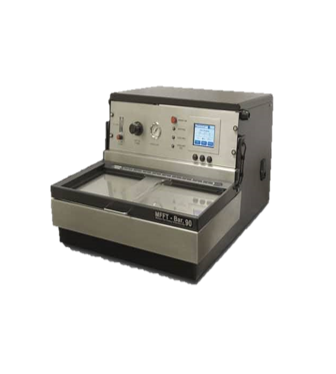

Rhopoint MFFT 90

  • Determines the MFFT of latex, emulsions and adhesives
  • Easy to use touch screen programme control
  • Nickel plated copper platen with an electronically imposed temperature gradient
  • Optional results printer for printing date and time stamped MFFT results
  • -10˚C to 90˚C operation

Rhopoint MFFT 90

Conforms to:
ASTM D 2354, ISO 2115,
DIN 53787

Platen dimensions:
483mm x 235mm ( L x W)

Air:
4 l min-1 @ 100 psig

Water:
Mains pressure; gravity drain
inlet temperature <15°C

Mains
110-120V AC or
220-240V AC

Packed Dimensions:
590mm x 900mm x 690mm (H x W xD)

Dimensions:
350mm x 550mm x 610mm ( H x W x D)

Weight:
38kg

Packed weight:
53.7kg

Order code:
MFFT-90 (-10 to 90°C)

Commodity code
9027 8017
